Wireless Sensors

Wireless Sensors is a leading developer of wireless sensor network products and solutions optimized for data centre environmental monitoring, condition monitoring, food services and industrial applications utilizing advanced mesh networking wireless technology.

Wireless Sensors products feature on board sensors for temperature, humidity, as well as accepting analogue signals and contact closures from third party devices.

The Wireless Sensors SensiNet router is a message-routing data logger  that automatically configures itself into a wireless mesh network and serves to wirelessly extend the reach of the entire SensiNet system by receiving and re-routing messages.

The Wireless Sensors SensiNet® Services data acquisition Gateway is a powerful appliance providing network management, user interface, data logging, trending, alarming and communications without any complicated software to install. A standard browser and network connection is all that’s required to access and configure the system. The GWAY-1022 also operates as stand-alone data logger with real time views, trending and e-mail alerts.

SensiNet Network Benefits

Reliable–Mesh networking provides multiple acknowledged and error checked communication paths for data acquisition ensuring the message always gets through whilst minimizing interference . The network is also self healing and able to recover from interruptions by seeking alternate paths.

Flexible -Move, add or eliminate sensors and the network reconfigures itself automatically.

Universal–Multiple protocols including Modbus, OPC , SNMP, ODBC, and Web Services ensure system compatibility or operate the system as a stand alone data logging system with local or web based logging.

Scalable -The same network can start with a single point and grow to thousands without replacing any components or performance degradation.

Wireless Sensors Products

 Part NumberDescription
Sensors
PT100 RTDTEMP-1022, -1024, 1122, 1124Resistance temperature detector
TempTEHU-2120Temperature
Temp/humidityTEHU - 2121,-2222Temperature & humidity
Digital input/outputCONT-1022Digital input
CurrentCURR-10224-20mA current input
VoltageVOLT-10220-10V analogue input node
Repeaters
MESH-1021Repeater with 24V DC power option
Gateways
GWAY-2100SensiNet services gateway
GWAY-2125SensiNet services gateway (supports up to 5 Ethernet bridges)
GWAY-1100Ethernet gateway (wired)
BRDG-1221Ethernet bridge

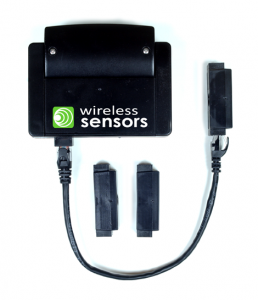

Wireless Sensors Data Centre Environmental Assessment  Kit

Data centre evaluation kit

The SensiNet Rack Sentry evaluation kit provides all the needed components to  deploy a fully functional  data centre environmental monitoring system for applications including rack monitoring. Any computer with a standard browser can access the user interface providing all data  logging, trending and visualization functions and requires no additional software. The  kit comes packaged in a rugged Pelican case to ease transportation and shipping.

RS-EVAL-001 Data Sheet

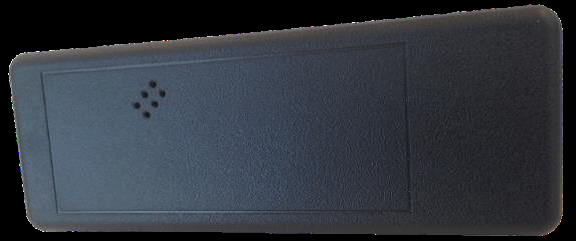

Wireless Sensors Rack Sentry Temperature and RH Sensor



TEHU2121-S

The SensiNetRack Sentry is a wireless temperature monitoring device and component of the SensiNetwireless sensor network. It reports highly accurate, real-time ambient level temperature and humidity measurements without wires and is FCC and CE-approved for license free operation worldwide.

TEHU-2121-S Data Sheet



Resistance Temperature Detector (RTD) Smart Sensor

The TEMP-1022/1122 & TEMP-1024/1124 are wireless temperature sensors that accept either 2 or 4 standard RTDs. They report highly accurate , real-time temperature measurements without wires and are FCC and CE-approved for license free operation.

TEMP – 1022/1122/1024/1124 Data Sheet

Ambient Temperature Smart Sensor

The TEHU -2120/ 2123 data acquisition Smart Sensors are wireless temperature  monitoring devices and components of the SensiNet  wireless sensor network. They report highly accurate , real-time  ambient level temperatures without wires and are FCC and CE-approved for license free operation.

TEHU – 2120  Data Sheet



Temperature & Humidity





The TEHU –2121 & -2222 Smart Sensors are wireless temperature and humidity monitoring devices and components of the SensiNet wireless sensor network.

TEHU-2121 Data Sheet     TEHU-2222 Data Sheet





Contact Input Smart Sensor

The CONT-1022 data acquisition Smart Sensor is a contact monitoring device which accepts two contact  inputs. It continuously monitors  the state of its inputs and reports their status on a selectable reporting interval and will also report any change in status immediately for real-time alarming. The CONT-1022 can be used with a variety of switches including mechanical, IR,  and magnetic

CONT- 1022 Data Sheet



Analogue Input (4-20 mA) Smart Sensor



The CURR-1022  is a wireless current sensing device which accepts two 0/4-20 mA signals. It reports highly accurate , real-time measurements without wires and is FCC and CE-approved for license free operation.

CURR 1022 Data Sheet

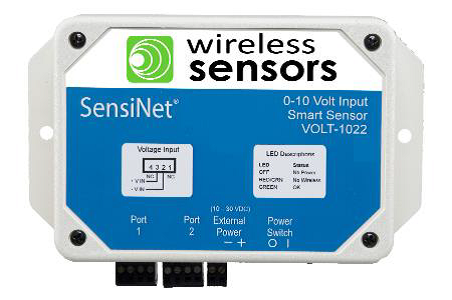

Analogue Input (0-10V DC) Smart Sensor

VOLT-1022 v2



The VOLT-1022 Smart Sensor is a wireless voltage sensing device which accepts two 0-10 VDC signals and is a component of the SensiNet wireless sensor network. It reports highly accurate , real-time measurements without wires and is FCC and CE-approved for license free operation .

VOLT 1022 Data Sheet



SensiNet Mesh Routers



The SensiNet MESH-1021 is a wireless router that automatically configures itself into a wireless mesh network and serves to wirelessly extend the reach of the entire SensiNet system by receiving and re-routing messages.

MESH-1021,-1022,-1028 Data Sheet

Wireless Gateways

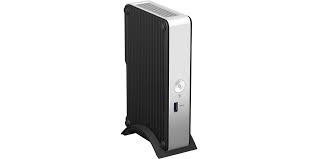

GWAY - 2100



The SensiNet® Services data acquisition wireless gateway is a powerful appliance providing network management, user interface, data logging, trending, alarming and communications without any complicated software to install. A standard browser and network connection is all that’s required to access and configure the system. The GWAY-2100 also operates as stand-alone data logger with real time views, trending and e-mail alerts.

GWAY–2100 Data Sheet

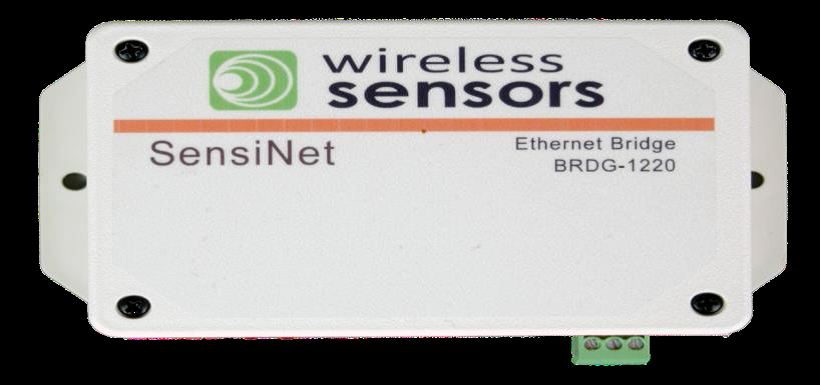

BRDG-1220



The SensiNet BRDG-1221 is a component of the SensiNet system which acts as a “bridge” between clusters of Smart Sensors , Mesh Routers and the Services Gateway. It leverages standard ethernet cabling allowing a “multi-cluster” network to exist across remote radio spaces yet providing a single point of integration and management of all sensor data.

BRDG-1221 Data Sheet

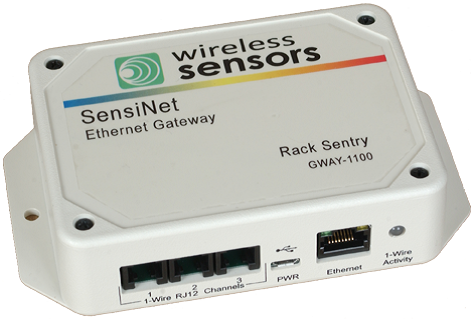

GWAY-1100

The SensiNet Ethernet Gateway is an environmental monitoring solution which is ideal for small computer rooms, network closets or other locations where an inexpensive, easy to deploy system is required. The GWAY-1100 supports wireless sensors for temperature, humidity and other critical parameters which can be mixed and matched to the needs of each installation through a unique daisy chained digital bus. Simply plug in the sensors and you’re up and running.

GWAY-1100 Data Sheet
